Fig. 7
From: Fast noisy long read alignment with multi-level parallelism

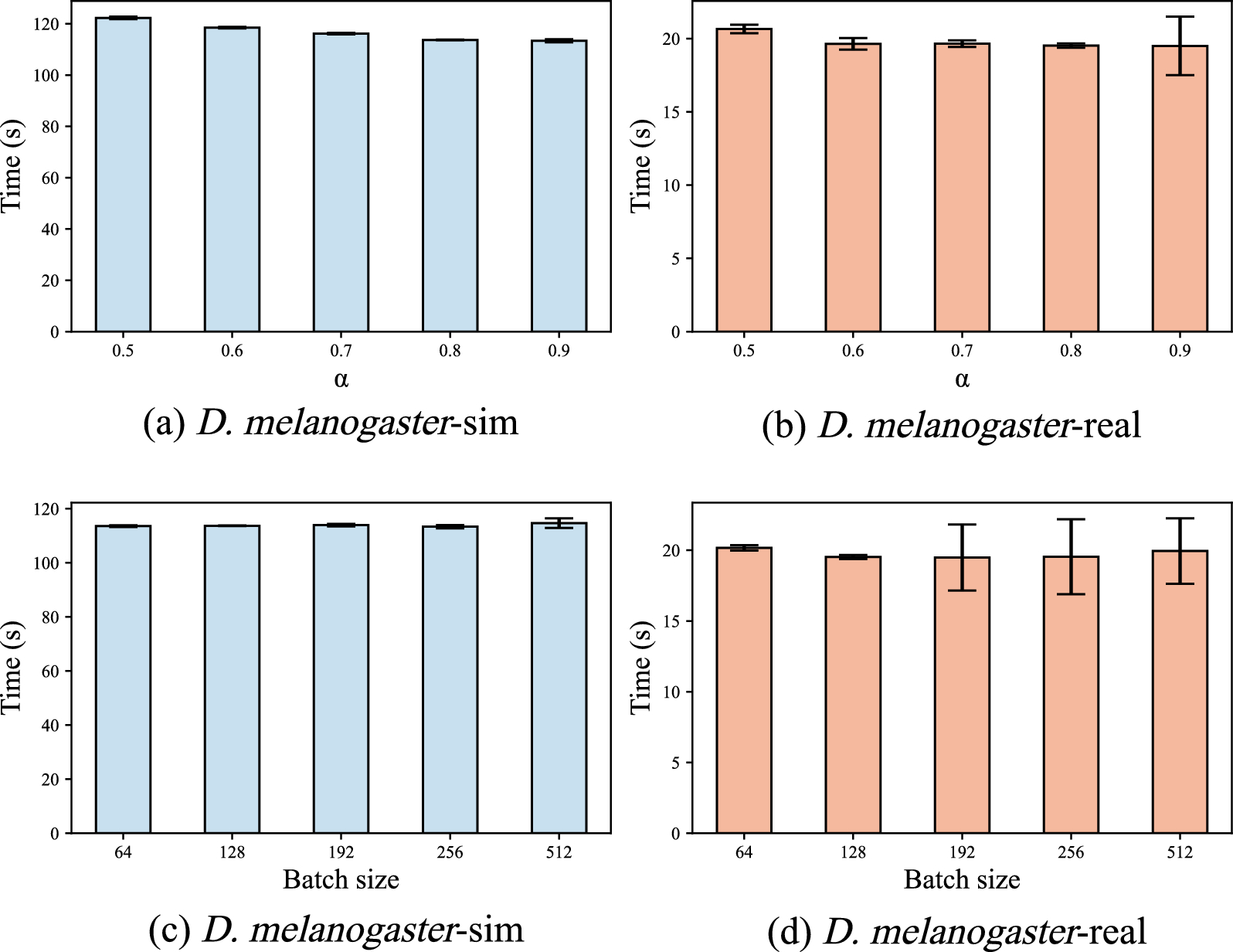

Influence of \(\alpha \) and bs values. a and b are the impact of \(\alpha \) on the program runtime on simulated and real D. melanogaster datasets, respectively. c and d are the impact of the bs value on the program runtime. The height of the bars represents the average runtime of four nodes (each with two threads), while the lower and upper ends of the error bars represent the runtime of the fastest and slowest nodes, respectively
